Product No.
|
6210ZLC-1
|
6210ZLC-2
|
6210ZLC-3
|
6210ZLC-4
|
6210ZLC-5
|
6210ZLC-6
|
6210ZLC-10
|
6210ZLCz-1
|
6210ZLCz-2
|
6210ZLCz-3
|
6210ZLCz-4
|
6210ZLCz-5
|
6210ZLCz-6
|
6210ZLCz-10
|
Type
|
in-line direct injection、exhaust turbocharged、4 stroke、Air inter cooling
|
Cylinder
|
6
|
Bore/Stroke (mm)
|
210/290
|
Rated Speed (r/min)
|
600
|
720
|
750
|
830
|
750
|
830
|
750
|
Continuous output (kW)
|
441
|
528
|
551
|
610
|
662
|
735
|
610
|
Resolution per hour power per hour
|
620/440
|
743/581
|
774/606
|
856/671
|
774/728
|
856/809
|
774/671
|
Mean Effective Pressure (Mpa)
|
1.46
|
1.76
|
1.76
|
1.62
|
Piston Average Speed (m/s)
|
5.8
|
6.96
|
7.25
|
8.02
|
7.25
|
8.02
|
7.25
|
Minimumsteady speedunder load(r/min)
|
240
|
288
|
300
|
332
|
300
|
332
|
300
|
Spec. Fuel Oil Consumption (g/kW.h)
|
202
|
Spec. Lub Oil Consumption (g/kW.h)
|
1
|
Rotation direction of crankshaft
|
To look from the flywheel side to the free side, to turn left is counter-clockwise,to turn right is clockwise.
|
Starting method
|
Air motor starting
|
Cooling method
|
Close circuit water cooling
|
Lubricating method
|
Pressure lubrication
|
Height of lifting position Crankshaft (mm)
|
1785
|

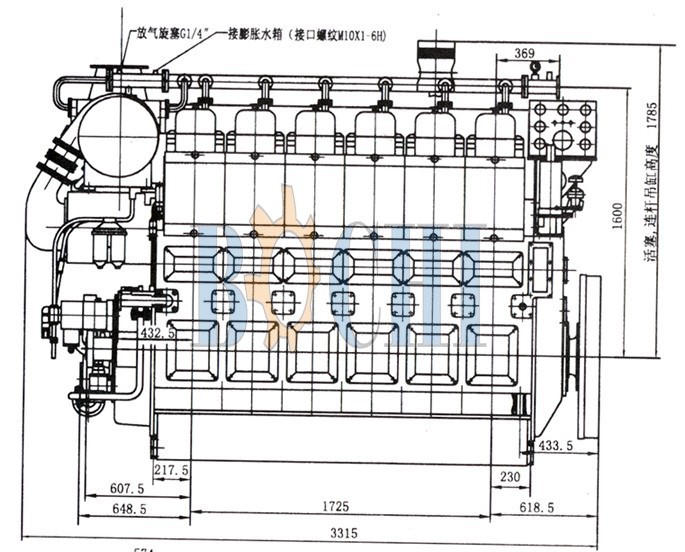

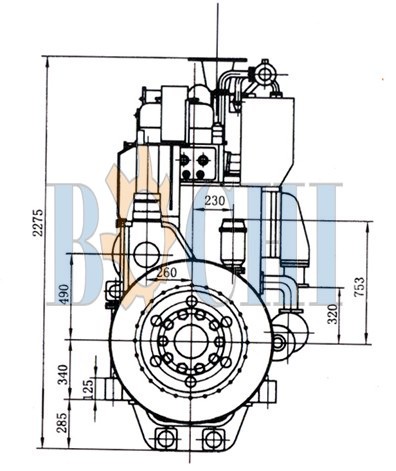

Dimension (mm)
|
3315×1145×2275
|
Net Weight (kg)
|
9100
|
