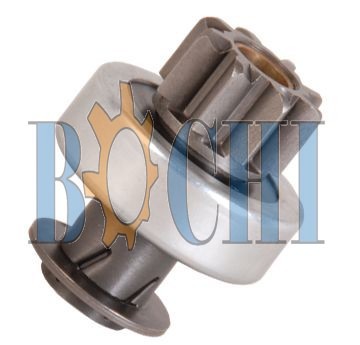

Starter drive for NIPPONDENSO

Date:2020-06-10 Click:679 Share to:

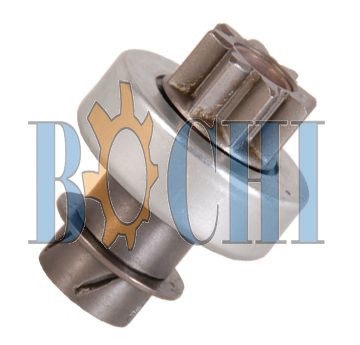

54-8207

54-8232

54-8221

39MT

Factory No.	Model No.	No of Splin	Rotation	No of Teeth	Pinion O.D.	Pinion I.D.	Lenth over 2 teeth	Bushing Dia	Length	Clutch O.D.
BMAESSD180	54-8241 (ND4.5)	16T	right	11T(M3.0)	40	27.5	14.42	/	146.7	58.5
BMAESSD352	54-8227 (ND4.5)	16T	right	13T(M2.5)	39.5	28.5	12.4	/	146.7	58.5
BMAESSD513		16T	right	9T(M3.5)	40	26	17.16	/	146.7	58.5
BMAESSD654		16T	right	11T(M3.0)	40	27.5	13.5	/	146.7	58.5
BMAESSD655		16T	right	10T(M3.175)	40	28.5	15.45	/	146.7	58.5
BMAESSD656		16T	right	11T(M3.175)	40	28.1	14.52	/	146.7	58.5
BMAESSD20001-000	54-8209	18T	right	9T	33	21	13.46	/	102.5	53.8
BMAESSD20002-000		18T	right	9T	36.2	22.7	14.57	/	102.5	53.8
BMAESSD20003-000		18T	right	10T	39.8	29	15.58	/	102.5	53.8
BMAESSD509	Unipoint STR-8200	18T	right	11T	29.2	21.1	10.5	/	102.5	53.8
BMAESSD08	54-8207	5T	right	9T	29.5	20	12.26	12.5	82	48
BMAESSD17	54-8232	5T	right	9T	29.5	20	12.3	11	53	44
BMAESSD113	54-8221	5T	right	9T	28	18.4	12.7	12.5	60	48
BMAESSD618	54-8228	5T	left	9T	30	19.2	12.4	12.5	82.8	48
BMAESSD629	54-8233	5T	right	8T	28.4	18.4	12.835	11	53.5	44
BMAESSD06		5T	left	8T	24.9	16.7	11.36	12.5	84.3	48
BMAESSD07		5T	left	8T	28.4	18	12.875	12.5	84.3	48
BMAESSD19		5T	left	8T	28.4	18	12.875	12.5	82.8	48
BMAESSD26		5T	left	8T	28.4	18	12.875	11	75.5	48
BMAESSD29		6T	left	9T	25.8	17.4	10.48	12	51.3	48
BMAESSD225	39MT	26T	right	11T/12T	/	/	/	/	133.5	68
BMAESSD239	HONDA	6T	right	9T	29.7	19.9	12.45	11	48	45
BMAESSD293	HONDA	6T	left	9T	29.7	19.9	12.45	11	44	45
BMAESSD418		8T	right	9T	26	16.97	10.74	12	44	48
BMAESSD465		8T	right	9T	27.5	17.15	11.4	12	44	48
BMAESSD527		8T	left	8T	28.35	18.46	12.835	12	54	45
BMAESSD587		8T	left	9T	27.5	17.15	11.4	12	48.5	45
BMAESSD546		5T	left	8T	28.4	18	12.875	12.5	85	48
BMAESSD547		5T	left	8T	24.9	16.7	11.36	12.5	85	48
BMAESSD357		5T/18T	left/25°	13T	40.9	30.2	12.85	11	94	44.5
BMAESSD469		5T/18T	left/20.44°	13T	40.9	30.2	12.85	11	94	44.5
BMAESSD495		10T	right	10T	32	21.4	12.25	11	43.2	44.5
BMAESSD631		10T	right	9T	29.7	19.9	12.45	11	50	44.5
