Starter drive for Bosch

Date:2020-06-10 Click:516 Share to:

54-9110-1

54-9195-1

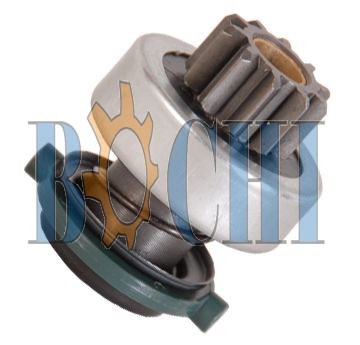

54-91110-1

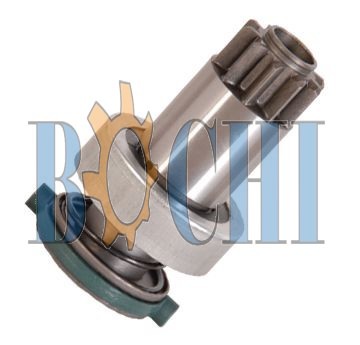

54-9196

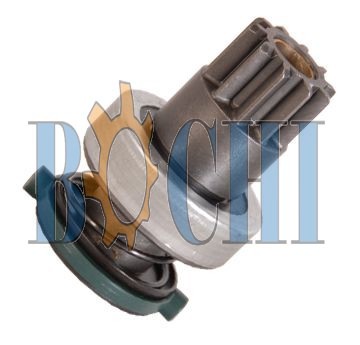

54-9171

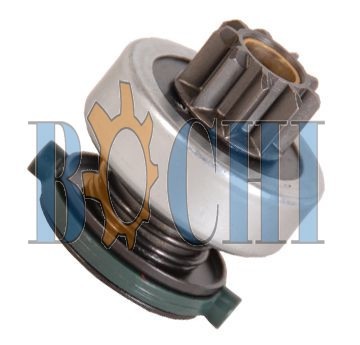

54-91103

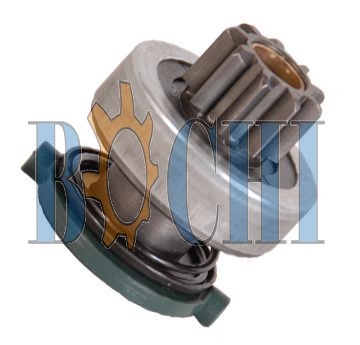

54-9140

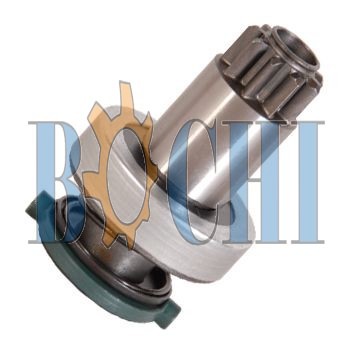

54-9156

54-9197

Factory No.	Model No.	No of Splin	Rotation	No of Teeth	Pinion O.D.	Pinion I.D.	Lenth over 2 teeth	Bushing Dia	Length	Clutch O.D.
BMAESSD121	54-9156	10T	right	10T	28	19.4	10.46	12	58.5	48
BMAESSD158		10T	left	9T	25.8	17.4	10.48	12	55.7	47
BMAESSD535	54-9172	10T	left	10T	27.8	19.6	10.44	12	79.6	47
BMAESSD120	54-9140	10T	right	9T	25.8	17.4	10.48	12	58.5	48
BMAESSD109A	54-91103	10T	right	9T	25.8	17.4	10.48	12	49	48
BMAESSD347	54-9161	10T	right	9T	29.7	19.9	12.3	12	58.5	47
BMAESSD459	54-9143-1	10T	left	9T	25.8	17.4	10.48	11	62.5	47
BMAESSD171	54-9169-1	10T	left	9T	25.8	17.4	10.48	11	58.5	48
BMAESSD256	54-9189	10T	right	10T	26.6	18	10.04	12	58.5	48
BMAESSD62	54-91110-1	16T	right	9T	25.8	17.4	10.48	11/14.2	83	53
BMAESSD71	54-91127-1	16T	left	10T	27.8	19.7	10.48	11/14.2	83	53
BMAESSD59/499	54-91101	10T	right	9T	29.7	19.9	12.3	12	51	47
BMAESSD456	54-91118-1	16T	right	9T	36	24.5	14.95	12	62	58
BMAESSD52	54-91129-1	10T	right	9T	25.8	17.4	10.48	12	54	47
BMAESSD74	54-9196	16T	right	10T	27.8	19.7	10.48	12	72	47
BMAESSD153	54-9197	16T	left	10T	27.8	19.7	10.48	11/14.2	83	47
BMAESSD75	54-9171	10T	left	10T	27.8	19.7	10.48	12	77	47
BMAESSD457	54-9313-1	16T	right	9T	34.5	22	14.32	12	62	58
BMAESSD38	54-9195-1	10T	right	9T	25.8	17.4	10.48	12	51	47
BMAESSD37A	54-9110-1	16T	left	9T	25.8	17.4	10.48	12	83	47
BMAESSD159	54-91104-1	16T	left	9T	25.8	17.4	10.48	11/14.2	83	47
BMAESSD106	54-9192	10T	right	11T	35.65	25.5	12.36	12	64	58
BMAESSD179	54-9170-1	10T	left	9T	25.8	17.4	10.48	12	80	47
BMAESSD651	1006209845	10T	right	12T	32	23.9	10.51	12	51	47
BMAESSD475	54-9177-1	10T	right	10T	27.6	19.6	10.4	12	64.7	53
BMAESSD645	1006209845	16T	right	9T	29.5	18.5	11.9	11/14.2	92	53
BMAESSD324	1006209929	10T	right	10T	26.8	18.25	10.1	12	49	46
BMAESSD641		9T	right	9T	29.5	20.6	12.1	12	58.5	53
BMAESSD377		10T	right	8T	27.2	17.3	12.26	11	47.7	45
BMAESSD392		10T	right	9T	25.8	17.4	10.48	11	47.7	45
BMAESSD424		16T	right	10T	27.8	19.7	10.48	11/14.2	82.5	45
BMAESSD425		10T	right	12T	38.8	28	13.2	12	58	53
BMAESSD524		10T	right	9T	29.7	19.8	12.3	11	47.7	45
BMAESSD586		16T	left	10T	27.8	19.7	10.48	11/14.2	83	45
