1、Crankcase components

   The side of the crankshaft has a side cover and an oil sight window for dis-assembly and inspection. The front section has a bearing seat and a front bearing cap at the power coupling end, and the fan bracket on the upper part of the rear bearing cap supports the fan component, and the upper part is cast with a cylinder support plane. The top is equipped with a respirator, and a special compressor oil is contained in the bottom of the crankcase.

2、Crankshaft, connecting rod and components

    The crankshaft of the crankshaft is equipped with a connecting rod, the rolling bearing at both ends of the crankshaft, the large end of the crankshaft is connected with the elastic coupling, and the small end is equipped with a pulley near the bearing to drive the cooling fan to rotate. The lubrication of the crankshaft is the rod of the connecting rod. Splash to parts such as the crankshaft and piston pin for lubrication.

3、Cylinder components

The cylinders are arranged in a W shape with a total of six cylinders, two primary cylinders, two cylinders of two, three, four and five cylinders. One, two and three cylinders are made of castings, and four or five cylinders are made of steel. There are heat sinks on the outside of the components to increase the heat dissipation area. The cylinder heads are equipped with inlet and exhaust valve components, inlet and exhaust pressure cylinders, and inlet and outlet gland piston components.

4、Piston components

Five-stage compression, six pistons, the piston material is aluminum alloy and steel, and the piston is equipped with a piston ring.

5、Suction and exhaust valve components

 The first-stage suction and exhaust valves are steel annular valves, and the second, third, fourth and fifth-stage inlet and exhaust valves are combined valves.

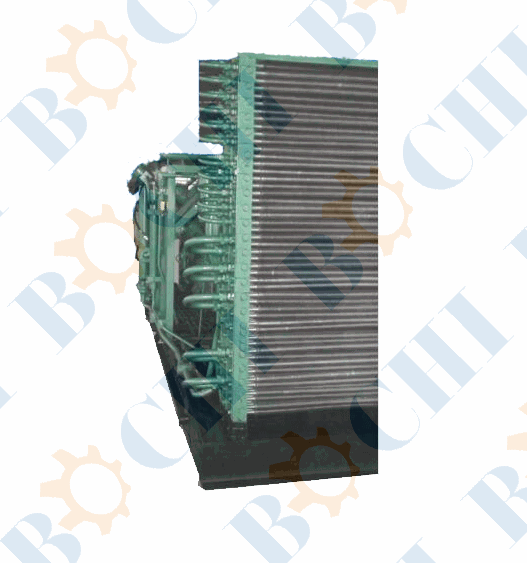

6、 Cooler and fan components

   Two parts of the after-cooler and the cooling fan. It is mounted on the common base by the standing foot, the upper part of the cooler is equipped with a safety valve, the lower part is equipped with a drain valve, and the guide box and the protective cover are arranged toward the crankcase end, and an air-cooling cooling fan is arranged in the middle, and the fan bracket is used to drive the fan. The components are mounted on the crankcase and the fan pulley is rotated by the crankshaft pulley at the end of the crankcase.

Ⅲ、Compressor Control System

v The instrument panel is equipped with a five-stage pressure gauge and a compressor oil temperature gauge.

v The compressor has a self-unloading function to the pressure.

v The compressor has an over-pressure automatic shutdown function.

v The exhaust pressure can be adjusted within the rated pressure according to the user's needs.

Ⅳ、Technical Standards for Design and Manufacturing

GB699	High quality carbon structural steel  Technical conditions
GB1031	Surface roughness parameters and their values
GB1173	Casting aluminum alloy technical conditions
GB1184	Shape and position tolerances No tolerances
GB1801	Tolerance and fit
GB3077	Alloy structural steel technical conditions
GB9438	Aluminum alloy technical conditions
GB9439	Gray iron casting
JB2230	Reciprocating piston compressor
JB2231	Reciprocating piston compressor cylinder diameter size
JB/T6431	Gray cast iron for positive displacement compressors
JB/T6908	Positive displacement compressors Technical conditions
ZBJ72 016	Ductile iron castings for positive displacement compressors
ZBJ72 025	Reciprocating compressor terminology
GB7777	Mechanical Vibration Measurement and Evaluation of Reciprocating Piston Compressors
GB151	Aluminum shell and tube heat ex-changer

Ⅴ、Quality Assurance
