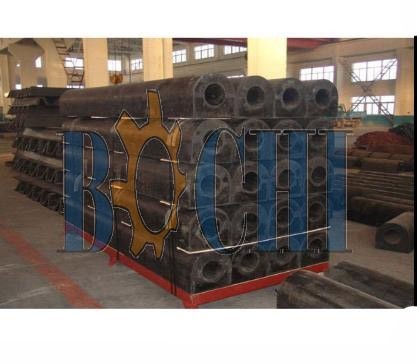

DO Type Rubber Fender

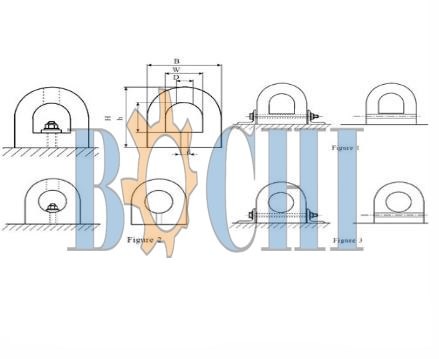

DO Type Rubber Fender Drawing
Product No.
|
BMMMERFDO-001
|
BMMMERFDO-002
|
BMMMERFDO-003
|
BMMMERFDO-004
|
BMMMERFDO-005
|
BMMMERFDO-006
|
BMMMERFDO-007
|
BMMMERFDO-008
|
Item
|
DO100
|
DO150
|
DO200
|
DO250
|
DO300
|
DO350
|
DO400
|
DO500
|
H
|
90
|
150
|
200
|
250
|
300
|
350
|
400
|
500
|
B
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
500
|
D
|
45
|
55
|
55
|
65
|
65
|
85
|
85
|
97
|
d
|
25
|
27
|
30
|
32
|
36
|
40
|
42
|
45
|
h
|
30
|
50
|
35
|
62.5
|
75
|
87.5
|
100
|
125
|
W
|
50
|
80
|
100
|
125
|
150
|
175
|
200
|
250
|
Bolt Size
|
M22
|
M24
|
M26
|
M27
|
M30
|
M30
|
M38
|
M42
|
End distance
|
100-150
|
100-150
|
100-150
|
100-150
|
100-150
|
100-150
|
100-150
|
100-150
|
Bolt Pitch
|
350-440
|
350-440
|
325-600
|
325-450
|
325-600
|
350-600
|
350-600
|
400-620
|
Max.length(mm)
|
2000
|
2000
|
2000
|
3000
|
3000
|
3000
|
3000
|
3000
|
Reaction Force
(kN/m)
|
54.91
|
83.2
|
105.7
|
132.2
|
158.4
|
184.8
|
211.2
|
316.8
|
Energy Absorption
(Kn-M/m)
|
0.91
|
3.5
|
4.61
|
0.64
|
0.95
|
1.12
|
1.61
|
3.6
|
Deflection
|
40%
|
Weight(kg/m)
|
10
|
22
|
38
|
59
|
84
|
115
|
150
|
234
|
1.This type of fender also can be installed as shown in figure1
|
2.The round holes is also avaiable as show in figure2&3
|
3.All the bolts in the same diameter
|
4.Production in accordance with stand
|
|
