AUSTRALIAN STANDARD LINK CHAIN
|
1、SHORT LINK CHAIN
|
CHAIN SIZE
|
WORKING LOAD
|

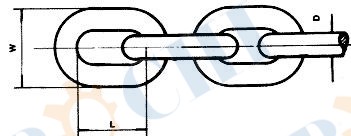

LINK DIMENSION
|
LINKS PER M
|
LENGTH PER 100KG
|
S
|
R
|
F
|
B.F.
|
H.D.G.
|
MM
|
MT
|
MM
|
MM
|
MM
|
PC
|
M
|
M
|
6
|
0.32
|
6.3
|
18.9
|
21.5
|
52.9
|
114
|
108
|
8
|
0.53
|
8.0
|
24.0
|
27.5
|
41.7
|
70.5
|
67.0
|
10
|
0.83
|
10.0
|
29.5
|
33.5
|
33.9
|
45.2
|
42.9
|
12
|
1.50
|
12.5
|
37.5
|
40.6
|
26.7
|
29.5
|
28
|
16
|
2.31
|
16
|
47.0
|
54.0
|
21.3
|
17.6
|
16.7
|
|
2、MEDIUM LINK CHAIN
|
CHAIN SIZE
|
WORKING LOAD
|
LINK DIMENSION
|
LINKS PER M
|
LENGTH PER 100KG
|
S
|
R
|
F
|
B.F.
|
H.D.G.
|
MM
|
MT
|
MM
|
MM
|
MM
|
PC
|
M
|
M
|
3
|
0.06
|
3.15
|
15.7
|
13.1
|
63.8
|
511
|
498
|
4
|
0.11
|
4.00
|
18.6
|
16.0
|
53.9
|
320
|
305
|
5
|
.19
|
5.00
|
22.0
|
19.4
|
45.4
|
203
|
193
|
6
|
0.32
|
6.30
|
26.1
|
23.5
|
37.8
|
129
|
120
|
8
|
0.53
|
8.00
|
32.2
|
29.5
|
31.0
|
77.8
|
74.1
|
10
|
0.83
|
10.0
|
39.1
|
36.2
|
25.0
|
48.5
|
47.1
|
12
|
1.35
|
12.0
|
46.0
|
44.0
|
21.7
|
34
|
33.3
|
13
|
1.50
|
13.0
|
49.1
|
46.1
|
20.3
|
29.7
|
27.7
|
16
|
2.31
|
16.0
|
59.6
|
56.5
|
16.8
|
20.2
|
18.2
|
20
|
3.67
|
20.0
|
73.3
|
70.0
|
13.6
|
12.3
|
11.6
|
24
|
5.31
|
24.0
|
87.0
|
83.6
|
11.5
|
8.5
|
8.04
|
|
3、LONG LINK CHAIN
|
CHAIN SIZE
|
WORKING LOAD
|
LINK DIMENSION
|
LINKS PER M
|
LENGTH PER 100KG
|
S
|
R
|
F
|
B.F.
|
H.D.G.
|
MM
|
MT
|
MM
|
MM
|
MM
|
PC
|
M
|
M
|
5
|
0.19
|
5.00
|
29.3
|
21.8
|
34.1
|
217.0
|
206.0
|
6
|
0.32
|
6.30
|
34.5
|
26.1
|
29.0
|
135.0
|
128.0
|
8
|
0.53
|
8.00
|
41.2
|
31.9
|
24.3
|
82.2
|
78.1
|
10
|
0.83
|
10.00
|
49.0
|
38.7
|
20.4
|
52.9
|
50.2
|
|
