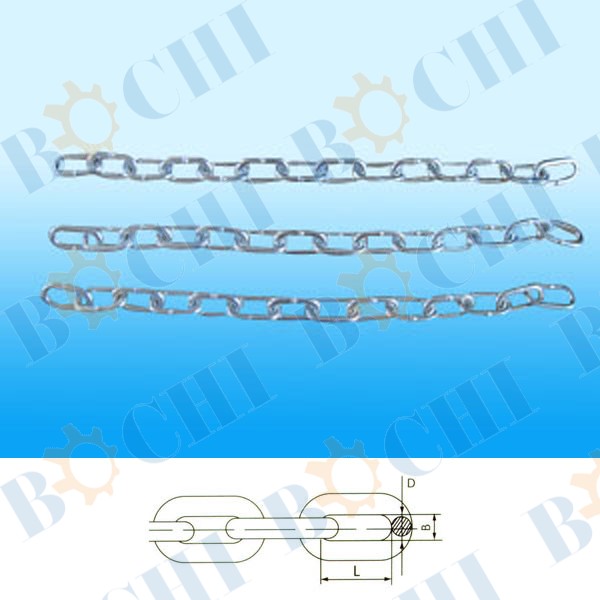

American standard Proofcoil chain NACM96(G30)
D
Nominal Size
|
Working Load Limit(max)
|
Proof Load (min)
|
Min.Breaking Load
|
Weight Per 100'
|
L
Inside Length
(max)
|
B
Inside Width
(min)
|
INCH
|
MM
|
KG
|
LB
|
KN
|
LB
|
KN
|
LB
|
KG
|
LB
|
MM
|
INCH
|
MM
|
INCH
|
1/8
|
4.0
|
180
|
400
|
3.6
|
800
|
7.2
|
1,600
|
9.0
|
19.8
|
23.9
|
0.94
|
6.4
|
0.25
|
3/16
|
5.5
|
355
|
800
|
7.2
|
1,600
|
14.4
|
3,200
|
18.3
|
40.3
|
24.8
|
0.98
|
7.7
|
0.30
|
1/4
|
7.0
|
580
|
1,300
|
11.6
|
2,600
|
23.2
|
5,200
|
30.0
|
66.1
|
31.5
|
1.24
|
9.8
|
0.38
|
5/16
|
8.4
|
860
|
1,900
|
16.9
|
3,800
|
33.8
|
7,600
|
43.5
|
96.0
|
32.8
|
1.29
|
11.2
|
0.44
|
3/8
|
10.0
|
1,200
|
2,650
|
23.6
|
5,300
|
47.2
|
10,600
|
64.5
|
142
|
35.0
|
1.38
|
14.0
|
0.55
|
7/16
|
11.9
|
1,680
|
3,700
|
32.9
|
7,400
|
65.8
|
14,800
|
91.3
|
201
|
41.6
|
1.64
|
16.5
|
0.65
|
1/2
|
13.0
|
2,030
|
4,500
|
40.0
|
9,000
|
80.0
|
18,000
|
110
|
242
|
45.5
|
1.79
|
18.2
|
0.72
|
5/8
|
16.0
|
3,130
|
6,900
|
61.3
|
13,800
|
122.6
|
27,600
|
162
|
357
|
56.0
|
2.20
|
20.0
|
0.79
|
3/4
|
20.0
|
4,800
|
10,600
|
94.3
|
21,200
|
188.6
|
42,400
|
254
|
560
|
70.0
|
2.76
|
25.0
|
0.98
|
7/8
|
22.0
|
5,810
|
12,800
|
114.1
|
25,600
|
228.2
|
51,200
|
306
|
675
|
77.0
|
3.03
|
27.5
|
1.08
|
1
|
26.0
|
8,140
|
17,900
|
159.1
|
35,800
|
318.2
|
71,600
|
419
|
924
|
90.9
|
3.58
|
31.7
|
1.25
|
|
