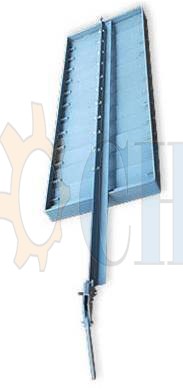

Funnel Closeable Shutter

Share to:



    • Funnel Closeable Shutter
    Product No. Nominal Size Casing Opening Size Shutter Board Quantity Weight (kg)
    B*H Wall B1*H1 L*B*T
    BMMOEWIFC001 400*580 416*680 396*160*4 5 28.6
    BMMOEWIFC002 500*460 516*560 496*160*4 4 28.3
    BMMOEWIFC003 500*700 516*800 6 37
    BMMOEWIFC004 500*940 516*1040 8 45.6
    BMMOEWIFC005 500*1180 516*1280 10 51.2
    BMMOEWIFC006 516*1520 516*1520 12 62.9
    Available in various sizes, and the size is changeable according to your will.
